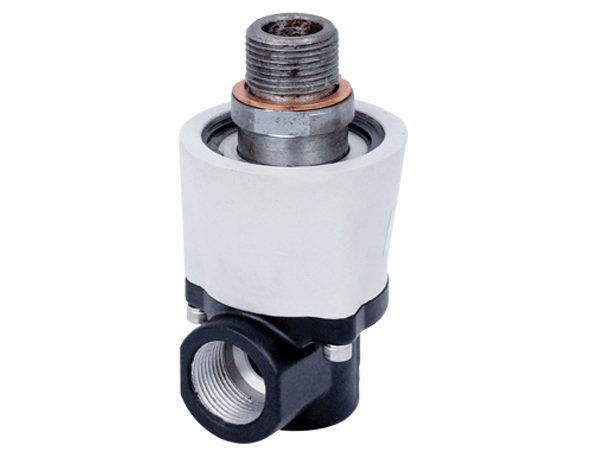

ALR Model
Features
- Aluminum Construction
- Light Weight
- Suitable for Only Air Application
- Seals, Ball Bearings as per International Standards
- Simple Design Easy to maintenance
Specifications
| Size | 1/4″ to 1.1/2″ |
| Body | Aluminium |
| RPM | 900 Max. |
| Pressure | 8 kg/cm² |
| Temperature | 50˚C |
| Media | Air |
About The ALR Model Rotary Joint
The ALR model Air Rotary Joints are available in 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1.1/4″ and 1.1/2″ inch size. This rotary joint is specially designed for air media. It can sustain temperature up to 50°C and 8Kg/cm² pressure. It works with 900 RPM and bubble-tight leakage.

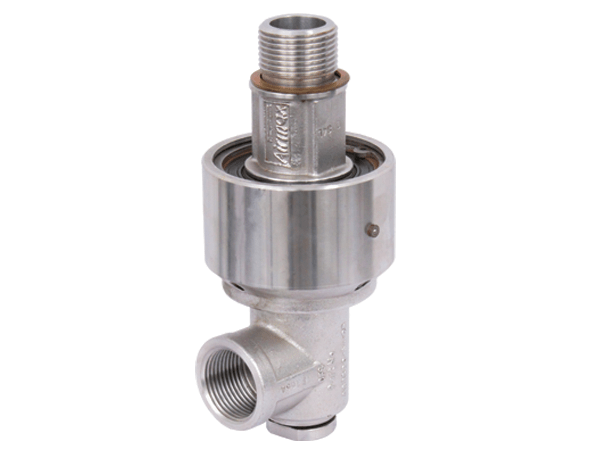

ASRS Model
Features
- General Purpose Application
- Stainless Steel MOC
- Standard Double Jet SKF Original Bearing
- Dual Flow Design
Specifications
| Size | 1/4″ to 2″ |
| Body | S.S 304 (CF8) |
| RPM | 1000 |
| Pressure | 8 Kg/cm² |
| Temperature | 50˚C |
| Media | Normal Water, Air, Oil & Gas |
About The ASRS Model Rotary Joint
The ASRS model Rotary Joints are available in 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1.1/4″, 1.1/2″ & 2″ inch size. This rotary joint is specially designed for Normal media like Normal Water, Air, Oil, and Gas. It can sustain temperature up to 50°C and pressure up to 8Kg/cm². It works with 1000 RPM and bubble-tight leakage.
Rotary Joint for Critical Media

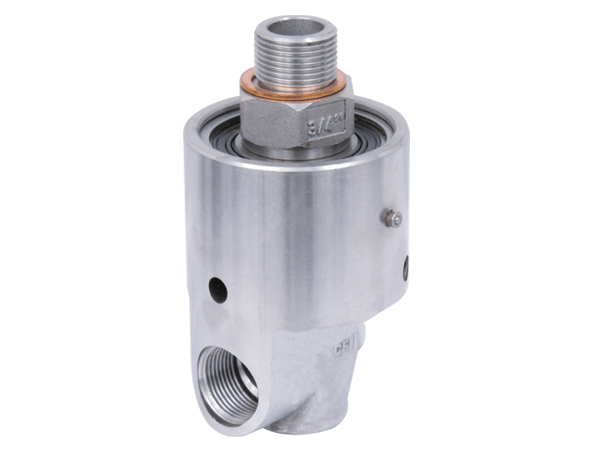

DRS Model for Water, Poor Quality Water, Chilled / Semi Hot Water
Features
- Heavy-Duty Design
- Double FAG / SKF Bearing
- Single & Dual Flow Application
- Complete S.S. 304 MOC
- Suitable for Critical Application
Specifications
| Size | 1/4″ to 2″ |
| Body | S.S 304 (CF8) |
| RPM | 3500 |
| Pressure | 10 Kg/cm² |
| Temperature | -5˚C to 150˚C |
| Media | Water, Poor Quality Water, Chilled / Semi Hot Water |
About The DRS Model Rotary Joint
The DRS model Rotary Joints are available in 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1.1/4″, 1.1/2″ & 2″ inch size. This rotary joint is specially designed for critical applications like poor quality water, chilled or semi-hot water. It can sustain pressure up to 10Kg/cm². With 3500 RPM it can work under -5°C to 150°C temperatures.

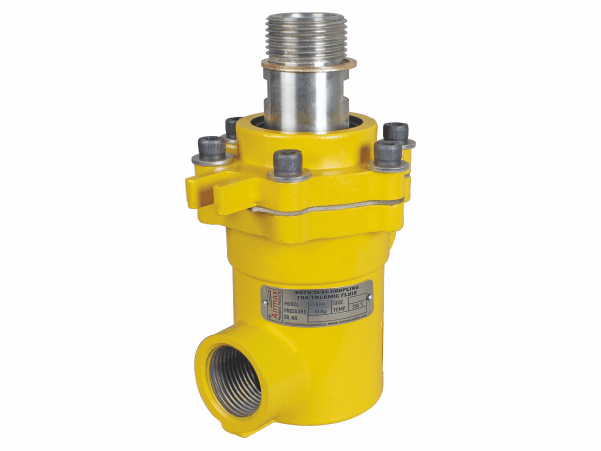

ARH Model
Features
- Dual Flow Design
- Self Supported Rotating Union
- Spherical Carbon Graphite Seal
- Seal Wear Indicator allows preventing maintenance
Specifications
| Size | 3/4″ to 2″ |
| Body | Cast Steel (WCB) |
| RPM | 300 |
| Seals | Carbon Graphite |
| Pressure | 10 Kg/cm² |
| Temperature | 350°C |
| Media | Thermic Fluid |
Size Range
The ARH model Rotary Joints are available in 3/4″, 1″, 1.1/4″, 1.1/2″ & 2″ inch size. This rotary joint is specially designed to carry thermic fluids. It can sustain temperatures up to 350°C. With bubble-tight leakage, it can work with 300 RPM.

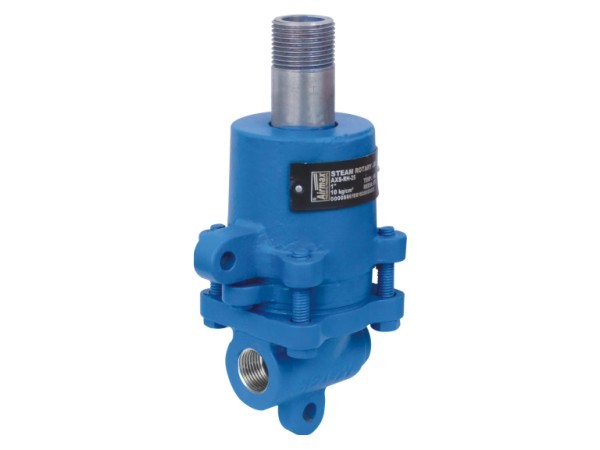

AXS Model
Features
- Design for steam application
- Optimized seal diameter
- Convex seal ring in compression
- Adjusting siphoned clearance option
Specifications
| Size | 1/2″,3/4″, 1″, 1.1/4″, 1.1/2″, 2″ |
| Body | Cast Iron |
| RPM | 200 |
| Pressure | 10 Kg/cm² |
| Temperature | 180˚C |
| Media | Steam |
Size Range
The AXS model rotary joints are available in a huge size range. This rotary joint is speacially designed for steam. It can bear temperature up to 180°C. With 200 RPM it can sustain pressure up to 10Kg/cm².
duly manufactures its Rotary Joints which are also known as Rotary Union & Roto Seal Coupling by using high quality graded materials while promising total in-house manufacturing and testing of the product, hence boasting of a quantitative as well as a qualitative production.
